Description

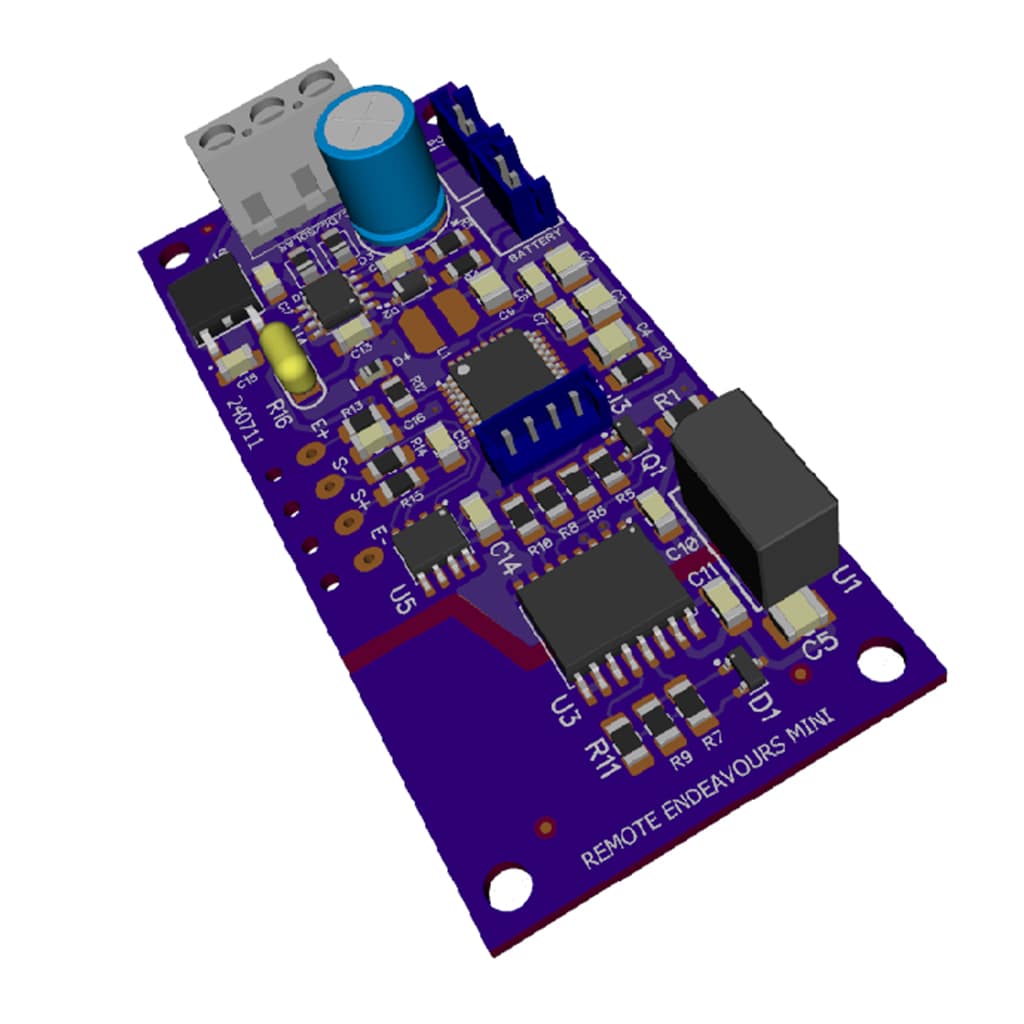

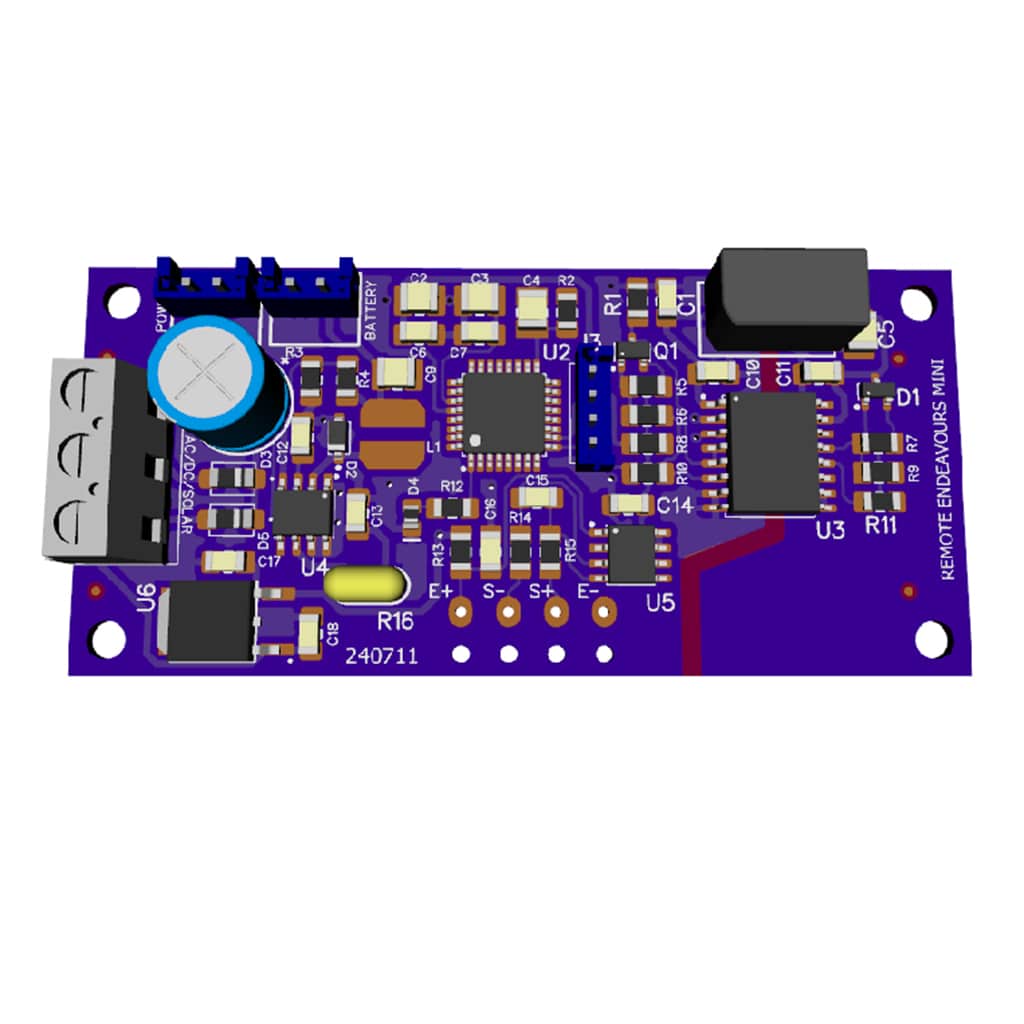

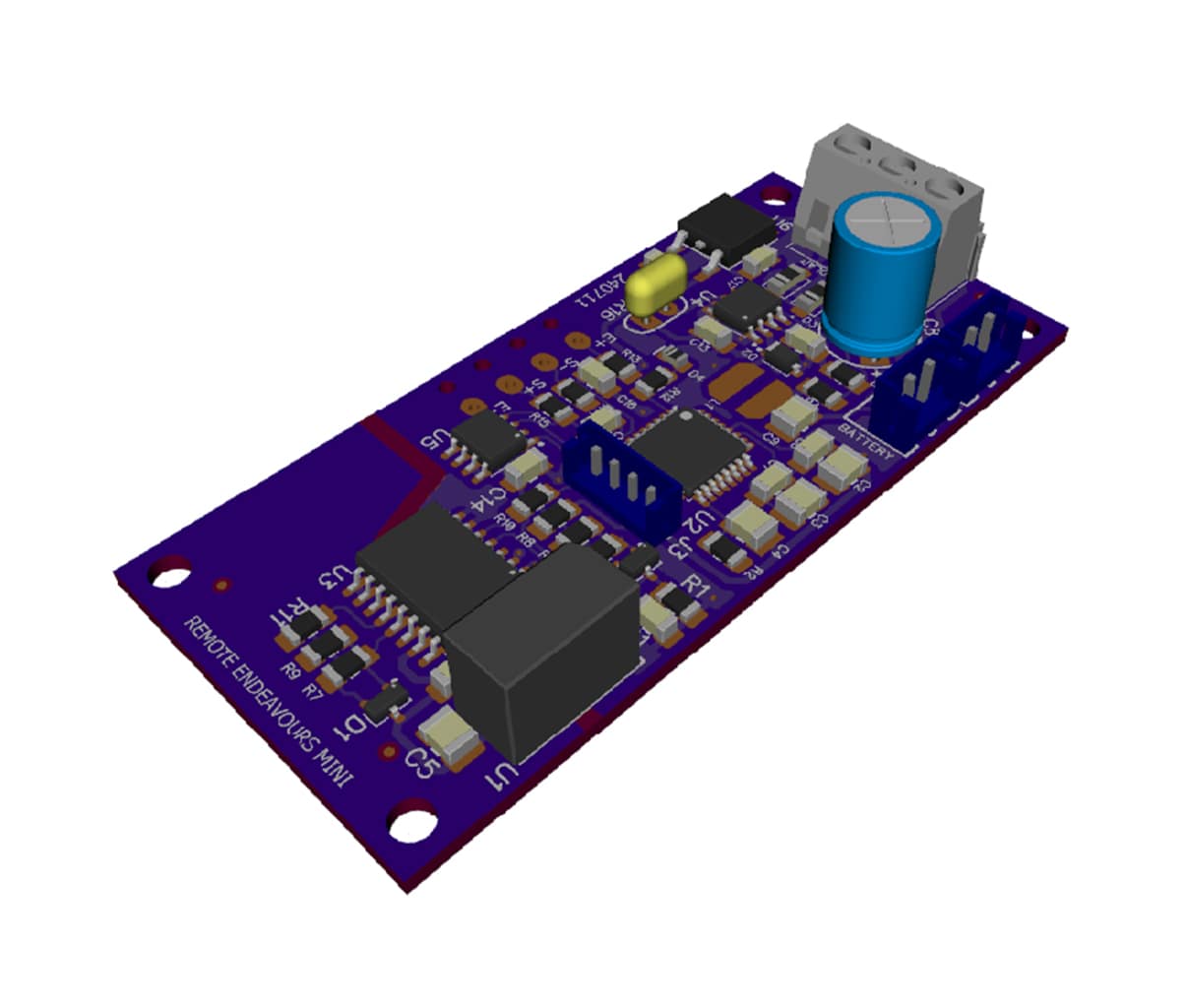

Introducing our Industrial Weight Measurement System, a versatile and high-precision solution for industrial weight measurement applications. This system is designed to accept various power sources, including solar and AC power supply, and includes a built-in battery charging circuit for uninterrupted operation. Utilizing the HX710 24-bit high-resolution ADC and the MG82F6D32 8-bit 8051-based microcontroller, this system ensures accurate and reliable measurements. For robust communication, the ISO3082 chip provides isolated RS485 connectivity.
Key Features
- High-Resolution ADC: HX710 24-bit ADC with selectable 10SPS or 40SPS output data rate for precise weight measurement.
- Versatile Power Sources: Accepts solar, AC power supply, and includes a battery charging circuit for continuous operation.
- Robust Microcontroller: MG82F6D32 8-bit 8051-based microcontroller as the main processor for efficient data processing.
- Isolated Communication: ISO3082 for isolated RS485 communication, ensuring reliable and noise-free data transmission.
- On-Chip Oscillator: HX710 with on-chip oscillator requiring no external component.
- Power-On-Reset: HX710 includes on-chip power-on-reset for reliable startup.
- Simultaneous Noise Rejection: 50 and 60Hz supply rejection for stable measurements.
Specifications
- ADC: HX710 24-bit high-resolution ADC
- Selectable Output Data Rate: 10SPS or 40SPS
- Supply Rejection: Simultaneous 50 and 60Hz
- On-Chip Oscillator and Power-On-Reset
- Microcontroller: MG82F6D32 8-bit 8051-based microcontroller
- Communication: ISO3082 for isolated RS485 communication
- Power Supply: Accepts solar, AC power supply
- Battery Charging: Built-in battery charging circuit
- Operating Voltage: 6v-32v, AC/DC
- Compatibility: Suitable for various industrial applications
- Dimensions: 75mm x 35mm
Applications
- Industrial Weighing: Ideal for precise weight measurement in industrial settings.
- Automated Systems: Suitable for integration into automated weighing systems.
- Remote Locations: Perfect for use in remote areas with solar power capabilities.
- Continuous Operation: Ensures uninterrupted operation with multiple power sources and battery backup.
